Data Transactions with Spring

Data Transactions with Spring#

Transaction#

Multiple actions performed as a single group

ACID Transactions#

  • A (Atomicity): All or nothing (no partial).

  • C (Consistency): Committed (written) when all actions (in a transaction) are completed.

  • I (Isolation): Each transaction is isolated from other transactions, meaning uncorrupted data.

  • D (Durability): Cannot be deleted/undone by a system failure.

Transaction Types#

  • Global: Multiple resources manage the transaction. Usually managed by the web server.

  • Local: One resource manages the transaction. e.g., JDBC connection.

Spring Framework#

Consistent programming model across global and local transactions.

Spring Transaction management types#

Programmatic#

  • Custom code for transaction management.

Example:

public void saveTicket(Ticket ticket) {
  Session session = SessionFactory.getCurrentSession();
  session.getTransaction().begin();   //--
  session.save(ticket);               //  | <=== transaction
  session.getTransaction().end();     //--
}

Declarative#

  • Manages transaction using Spring-specific annotations.

  • Separates transaction management from business code.

Example:

@Transactional
public void scheduleRelease(Ticket ticket, Release release) {
  ticketDao.saveTicket(ticket);
  assignToRelease(ticket, release);
  doOtherStuff(ticket);
}

Manages everything:

  1. Begin

  2. Suspend

  3. Commit

  4. Rollback

  5. Transactional parameters

Transaction Managers#

Programmatic Transaction Management:

  1. Transaction template: Similar to Spring templates like JdbcTemplate and other available templates.

  2. Platform transaction manager: Handles transactions across Hibernate, JDBC, JPA, JMS, etc.

Spring Transaction Managers:

  1. Platform transaction manager

  2. JTA

  3. Hibernate

  4. DataSource

  5. JPA

@Transactional annotation#

  • Proxy is created to hold transaction management code.

  • Annotation used at the class, interface or method level.

  • Transaction propagation is handled automatically.

NOTE: In Spring boot, it works without configuration.

Spring Configuration#

  • JPA Transaction Manager: Registers a transaction manager for us.

  • Additional configuration: Datasource, entity manager, repositories.

  • Spring Data Repositories.

Lifecycle and Scope#

Database Transaction#

@Transactional defines a single transaction, in the scope of a persistence context.

Persistence Context#

  • Defined in JPA

  • Handles a set of entities that contain data to be persisted.

How @Transactional works?#

Via proxies!

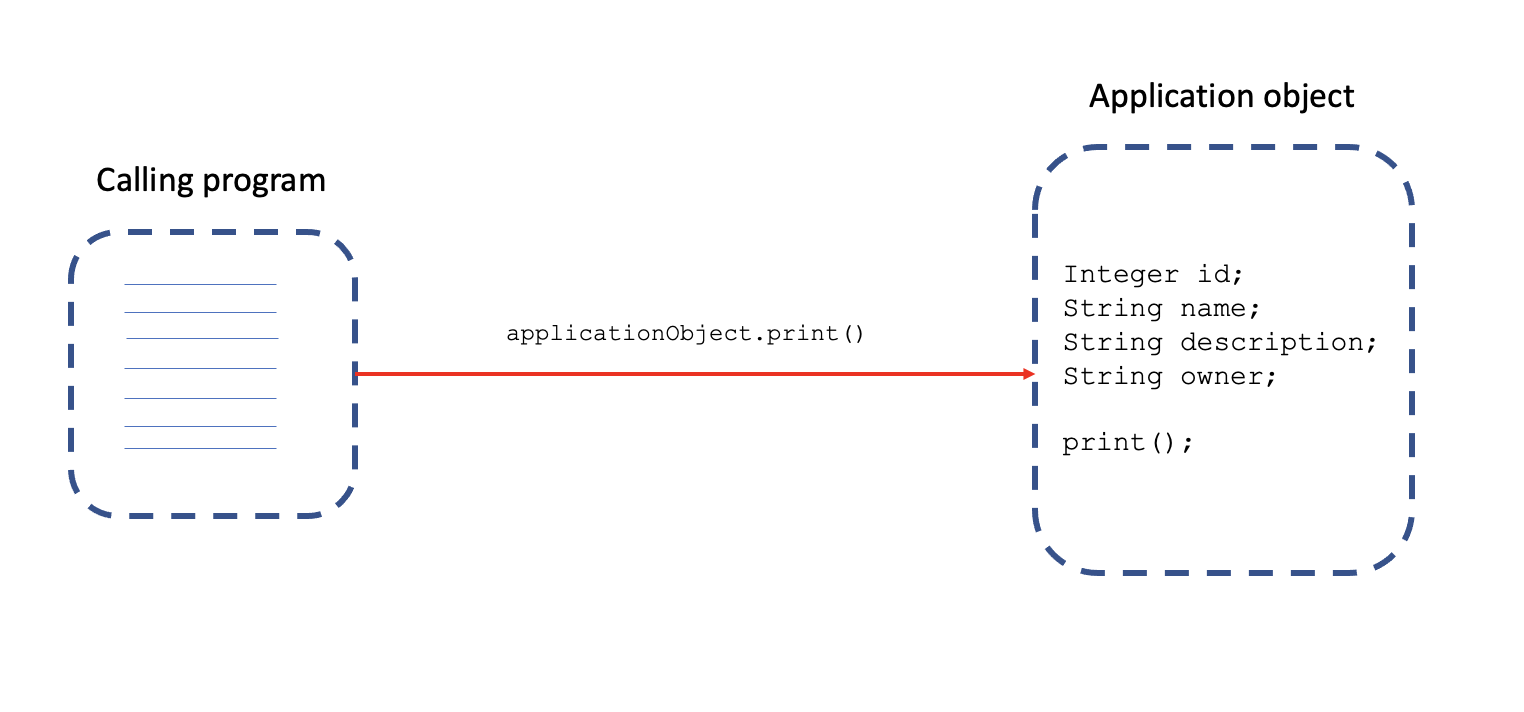

Without proxy implementation:

spring-proxy

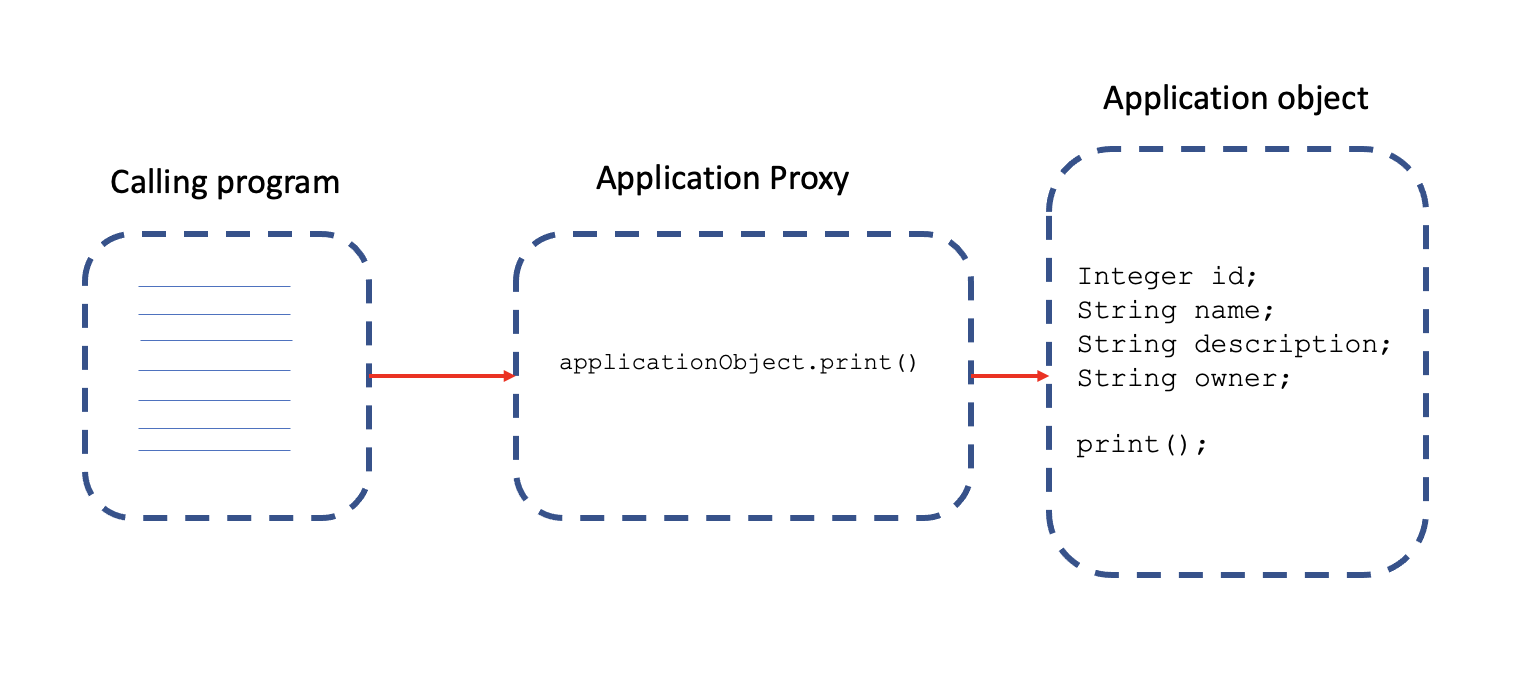

With Proxy implementation:

spring-proxy

Proxy#

  • Transaction Interceptor: Intercepts method calls.

  • Platform transaction manager: Handles transactions.

Difference proxies in Spring (JPA?) transaction handling:

  1. Persistence context proxy

  2. Entity manager proxy

  3. Transaction aspect

  4. Transaction manager

Rollbacks#

Rollbacks will occur for RuntimeException or unchecked-exception only.

  • Use @Transactional(rollbackFor=Exception.class) to state otherwise.

  • Use @Transactional(noRollbackFor=SpecificException.class) to avoid rollback on a specific exception.

Rollback will happen in case of:

  1. Throw an exception from code.

  2. Spring catches an unhandled exception.

  3. Spring determines to mark the transaction for “rollback”.

NOTE:

To enable the transaction logging from Spring, set: logging.level.org.springframework.transaction.interceptor=TRACE

Transaction management code#

Configuration:

private final TransactionTemplate transactionTemplate;

// constructor
public ReleaseService(PlatformTransactionManager transactionManager) {
  this.transactionTemplate = new TransactionTemplate(transactionManager);
  this.transactionTemplate.setPropagationBehaviorName("PROPAGATION_REQUIRES_NEW");
  this.transactionTemplate.setReadOnly(true);
}

A simple 2 step transaction with the above configuration:

transactionTemplate.execute(new TransactionCallbackWithoutResult() {
  public void doInTransactionWithoutResult(TransactionStatus status) {
    try {

    } catch (NoSuchElementException exception) {
      exception.printStackTrace();
      status.setRollbackOnly();
    }
  }
});

Fine-grained control in programmatic transaction management, using platform transaction manager directly.

public Release scheduleRelease(Release release) {
  TransactionDefinition transactionDefinition = new DefaultTransactionDefinition();
  TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);

  try {
    createTickets(release);
    assignTicketsToRelease(release.getId(), release.getTickets());

    transactionManager.commit(transactionStatus);
  } catch (RuntimeException e) {
    transactionManager.rollback(transactionStatus);
    throw e;
  }

  return release;
}

Declarative transaction management (vs Programmatic)#

  • Manage transaction via configuration.

  • Separate transaction logic from business logic.

  • Easy to maintain.

  • Preferred when a lot of transaction logic.
