Self Healing Services

Self Healing Services#

Covers:

  • Fault Tolerance

  • Self-healing

Failures in Distributed Systems#

“Failures are Inevitable”

Few areas where failures can occur

  • hardware fails

  • software fails

  • network fails

Chance of failure becomes “multiplied” in Distributed systems

Cascading Failures#

“… a failure in a system of interconnected parts in which a failure of a part can trigger the failure of successive parts” - Wikipedia

Multiple issues due to cascading failures:

  • fault tolerance problem

  • resource overloading problem

Solutions:

  • Learn to embrace failures:

    • Tolerate failures

    • Gracefully degrade : examples are, empty/null/dummy response instead of failure.

  • Limit resource consumed

    • Constrain usage : put limited resources and not allowing requests stacking up.

Circuit Breaker Pattern#

“… a design pattern in modern software development used to detect failures and encapsulates logic of preventing a failure to reoccur constantly …” - Wikipedia

Netflix Hystrix#

Hystrix is a latency and fault tolerance library designed to stop cascading failure and enable resilience in complex distributed systems where failure is inevitable.

Implements the circuit breaker pattern:

  • Wraps calls and watches for failures

    • 10 sec rolling window : Detects failures within a “10 sec rolling window”

    • 20 request volume : Request should be at least 20 requests

    • >= 50% error rate : Circuit tripped when >= 50% are errors in a rolling window

  • Waits & tries a single request after 5 sec : Waits and tries a single request every 5 sec and determines whether to close the circuit

  • Fallbacks : Short-circuited, timed-out, rejected or failed requests results in “fallbacks”

Protects services from being overloaded:

  • Thread pools, semaphores, & cascading failures : If no resource is available (in threadpool) all the subsequent requests fail immediately with a fallback

Using Spring cloud + Netflix Hystrix#

Application.java

@SpringBootApplication
@EnableCircuitBreaker // <----
public class Application {
    public static void main(String args...) {
        SpringApplication.run(Application.class, args);
    }
}

Service.java

@Service
public class Service {
    @HystrixCommand(fallbackMethod = "somethingElse")
    public void doSomething() {
        // ...
    }

    public void somethingElse() {
        // ...
    }
}

NOTEs:

  • If you want hystrix metric as well, add spring-boot-actuator dependency as well.

  • Be careful with Hystrix timeouts:

    • Ensure timeouts encompass caller timeouts plus any retries

    • Default: 1000ms

    • hystrix.command.default.execution.isolation.thread.timeoutInMilliseconds=<timeout_ms>

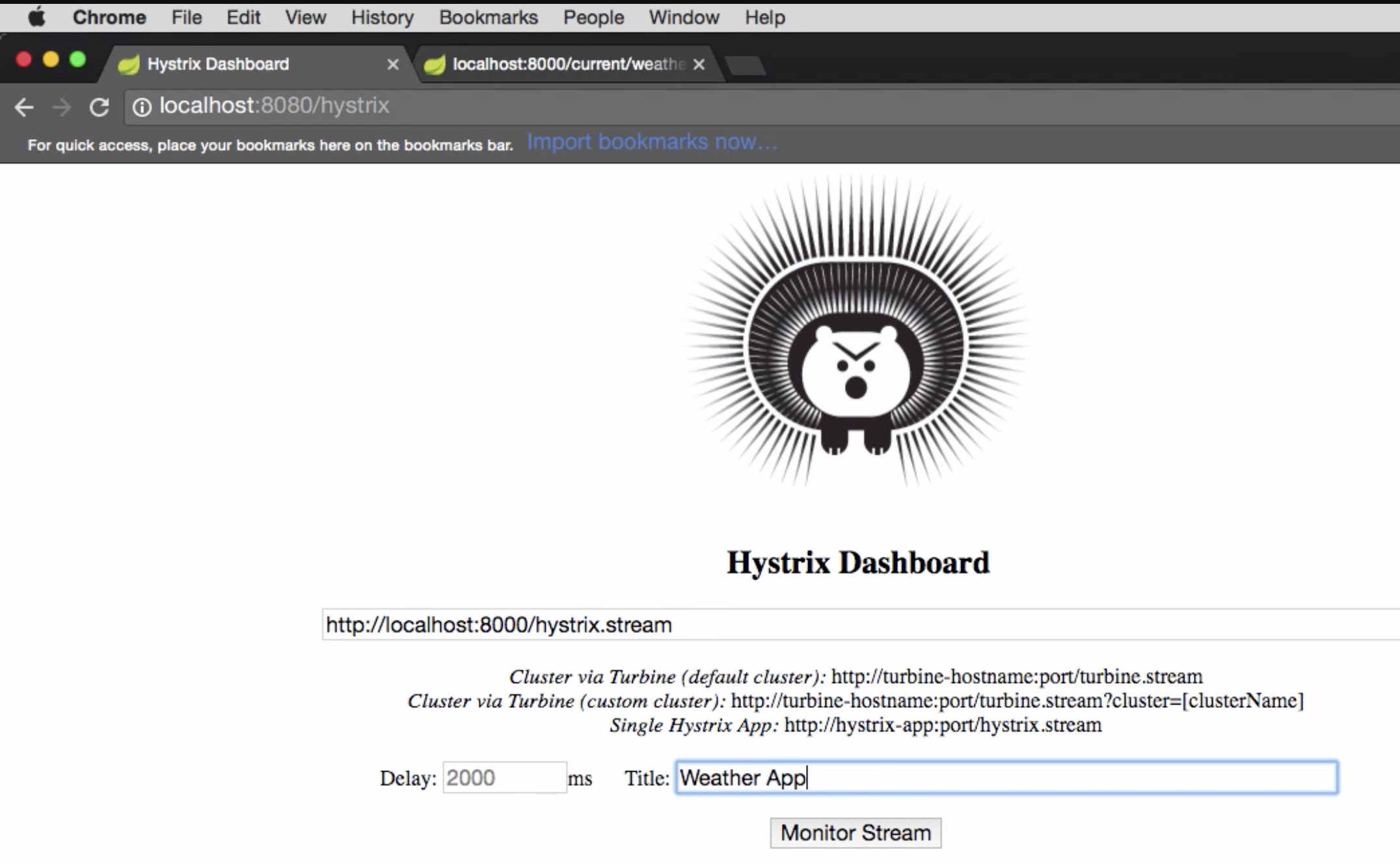

Hystrix Dashboard#

Tracks metrics such as:

  • Circuit state

  • Error rate

  • Traffic volume

  • Successful requests

  • Rejected requests

  • Timeouts

  • Latency percentiles

Monitor protected calls:

  • Single server or cluster

To use is, just add a dependency and add an annotation:

@SpringBootApplication
@EnableHystrixDashboard // <----
public class Application {
    public static void main(String args...) {
        SpringApplication.run(Application.class, args);
    }
}

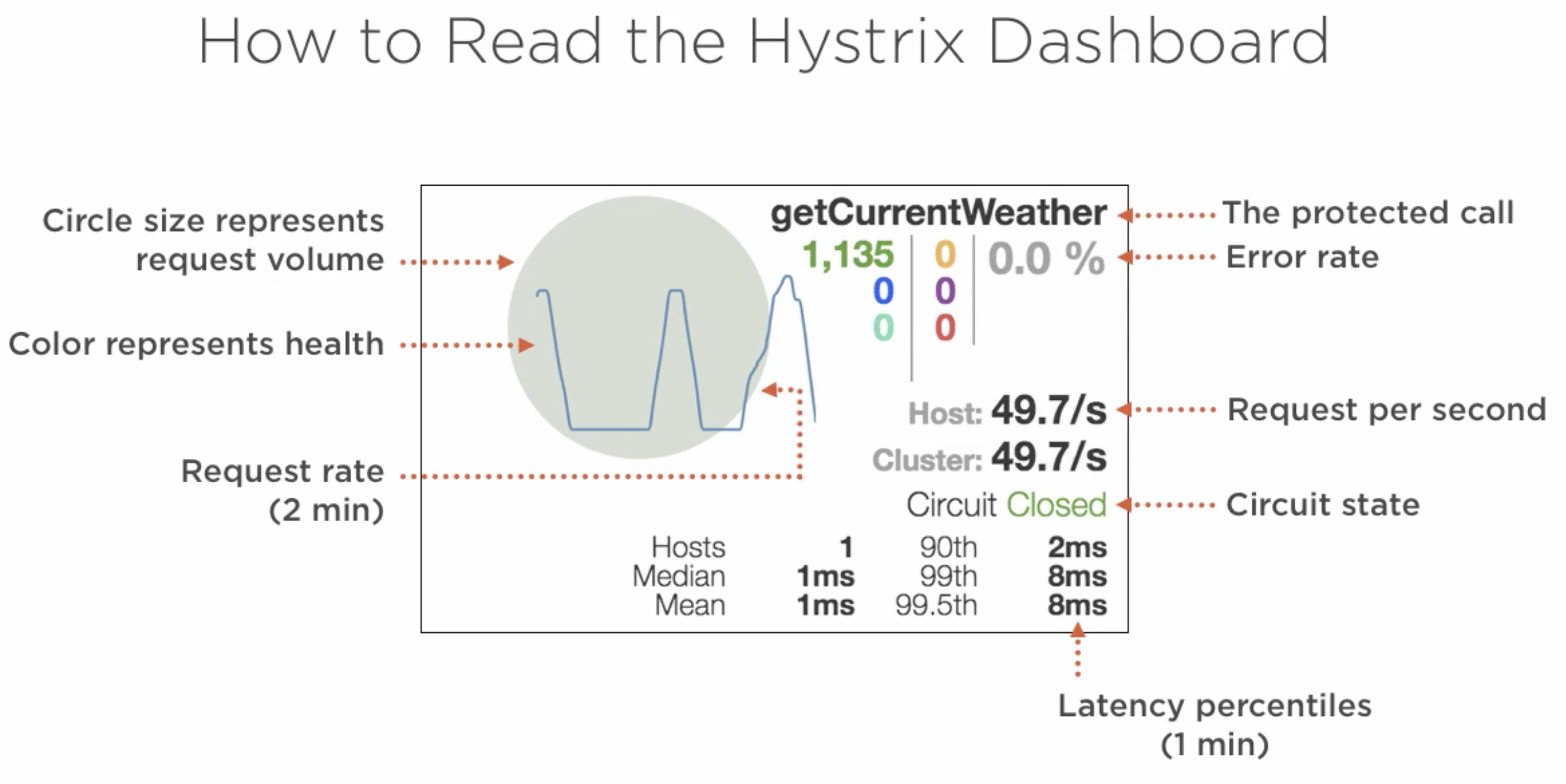

Reading Hystrix Dashboard#

Reading Dashboard

Dashboard

  • Start a standalone hystrix server (just like standalone discovery server)

  • Put a server’s / hystrix.stream endpoint

  • Give a name

Netflix Turbine#

“Turbine is a tool for aggregating streams of Server-Sent Event (SSE) JSON data into a single stream…”

Why?

  • Hystrix stream is for a service

  • To track multiple services, we need to open multiple dashboards and track them independently.

Using Spring cloud + Netflix Turbine#

Application.java

@SpringBootApplication
@EnableTurbine
public class Application {
    public static void main(String args...) {
        SpringApplication.run(Application.class, args);
    }
}

application.properties

turbine.app-configs=<list_of_service_ids>
turbine.cluster-name-expression='default'

OR application.yml

turbine:
  appConfig: <list_of_service_ids>
  clusterNameExpression: "'default'"
